22 AWG PVC Covered Stranded Hook Up Wire

22 AWG PVC Covered Stranded Hook Up Wire
Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire Thumbnail 22 AWG PVC Covered Stranded Hook Up Wire

Minimum order of 30 feet.
One continuous spool of wire for the total number of feet ordered.

Price: $0.20 Per Foot

Part Number: 22PVCST

In Stock
Color Options
feet @ per foot =

Description

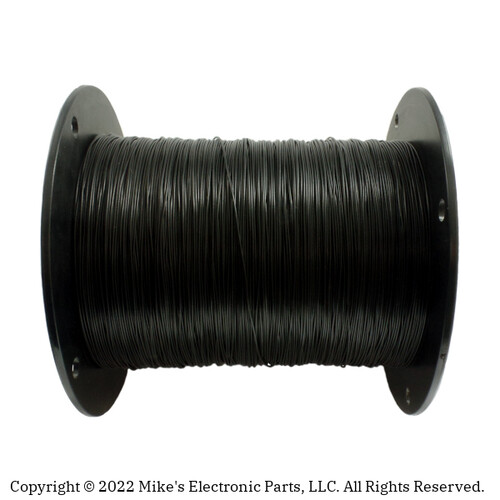

Stranded 22 AWG PVC Covered Wire Tin Plated.

If you are making an Oat Box Crystal Radio then this is the wire you need for the coil and can be used for the antenna and ground as well.

Rated: UL1007
Maximum Voltage: 300V
Maximum Temperature: 80C
Stranding: 7x30
PVC Insulation
Tinned copper wire
Outside Diameter: 0.062 inch
