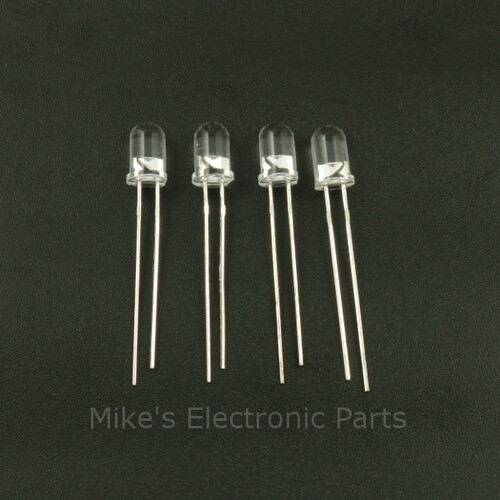

Super Bright LEDs 5mm

Super Bright LEDs 5mm

Price per 1 each LED.

Price: $0.25 to $0.75 Each

Part Number: SB-Leds

Description

Super Bright LEDs.

All colors of LEDs have clear lens.
Diameter 5mm.
Normal operation current 20ma.
Forward Voltage:

  • White - 3.0V
  • Green - 3.5V
  • Red - 2.0V
  • Yellow - 2.0V
  • Blue - 3.0V

Maximum luminous intensity:

  • White - 12,000 mcd
  • Green - 11,000 mcd
  • Red - 5,800 mcd
  • Yellow - 5,800 mcd
  • Blue - 4,000 mcd

A datasheet is only available for the white super bright LEDs. The difference for the colored LEDs is in the forward voltage and luminous intensity as noted above. Super Bright LED White Datasheet
