1500/46 Litz Wire

1500/46 Litz Wire

Minimum order of 5 feet.
One continuous spool of wire for the total number of feet ordered.

Price: $1.51 to $1.90 Per Foot

Part Number: 1500/46-Litz

Feet Price
1 to 14 $1.90
15 to 79 $1.68
80 + $1.51

Description

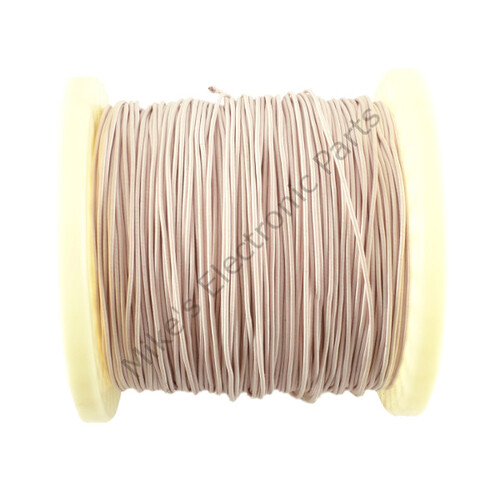

1500 strand 46 AWG litz wire.
Type 2.
Single served nylon.
Individual strands are 2UEW (Double Urethane Enameled Wire).
Approximately .092 inch diameter.
Temperature Class: 180C
Max Voltage: 500V
Optimal frequency range for 46 AWG litz wire is 850 KHz – 1.4 MHz.

Additional information for Litz Wire can be found here: Litz Wire Information

All wire sales are final. There are no returns or refunds on wire sales. Please see the Return and Refund Policy page for more details.
